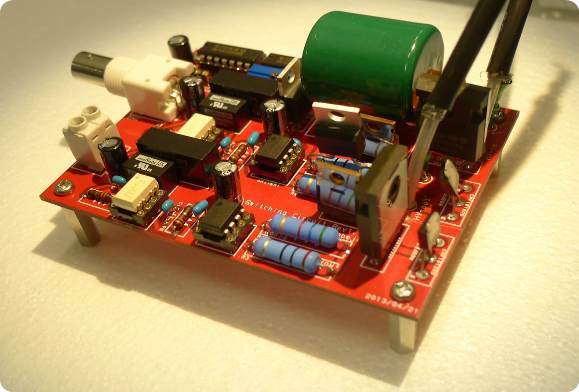

Symbol | Function | Test Condition | Values | Units |
---|---|---|---|---|
Vin | Supply Voltage | T=25℃ | 5.0 | Vdc |
Iin | Supply Current | T=25℃ | 300 ~ | mA |
VHV-IN | Input High Voltage | T=25℃ | ~ 1000 | V |
VHV-OUT | Output High Voltage | T=25℃ | ~ 1000 | V |
td-in | Input Pulse Width | T=25℃, TTL=5.0Vdc | 70 to 10000 | ns |
td-out | Output Pulse Width | T=25℃ | 150 to 10000 | ns |
f | Frequency | T=25℃ | 0.1 to 10 | kHz |

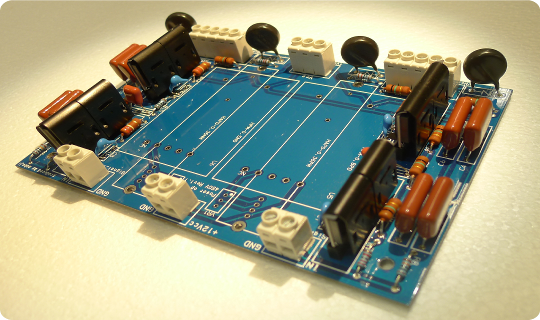

Symbol | Function | Test Condition | Values | Units |
---|---|---|---|---|
Vin | Supply Voltage | T=25℃ | 12 | Vdc |
Iin | Supply Current | T=25℃ | 2.0 | A |
VCNTL | Output Voltage Control | T=25℃ | 0 to 4.5 | Vdc |
+Vout | Output Voltage | T=25℃ | 0 to +450 | V |
-Vout | Output Voltage | T=25℃ | 0 to -450 | V |
Iout | Output Current | T=25℃ | 1 | mA |
CH+ | Positive Voltage Output Channel Number | - | 2 | ch |
CH- | Negative Voltage Output Channel Number | - | 2 | ch |
CH+ Mon | Positive Voltage Monitoring Number | - | 2 | ch |
CH- Mon | Negative Voltage Monitoring Number | - | 2 | ch |
